for ready made unit size is W2.25M*L5.8M*H2.8M,one 40HC container can load 2 units
for disassembled unit,the size is W3M*L6M*H2.8M,one 40HC container can load 12 units
one 20ft container can load 5 units,one 40HC container can load 12 units
widely used as site office,prefabricated labour camp,refugee shelter,prefab dormitory etc

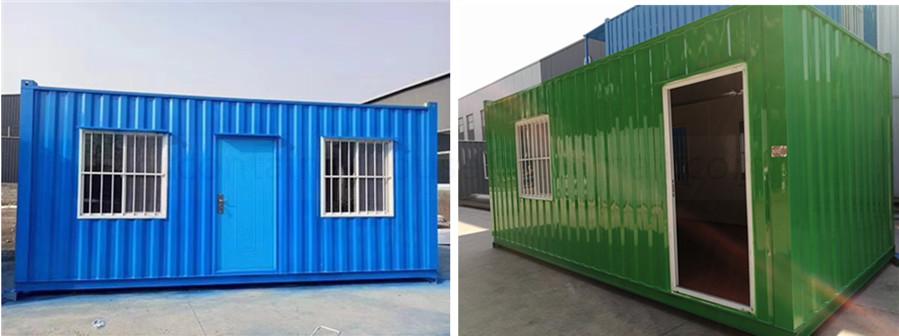

20ft modular steel structure container house homes for sales
client can choose to buy two options
1. ready made type 1*40HC container can load 2 sets,each unit size W2250*L5800*H2500mm
2. buy the materials and install it locally,the size is W3M*L6M*H2.8M,one 40HC container can load 12 units
techincal specification of 20ft modular steel structure container house homes for sales
wind load:120km/h
snow load:20cm dry snow
seismic load:7 grade
bearing load:150-200kg/m2
1.steel structure
top :galvanized 80*40 tube steel and angle steel
bottom: #12 channel beam+galvanized tube steel
oosts: bended galvanized steel frame
lifting points: 4pcs
2.floor
15mm thickness MGO board(magnesium oxide board)
3.top panel
50mm thickness eps sandwich panel inner skin 0.3mm ,exterior skin 0.4mm 12kg/m3
4.wall panel
50mm thickness rock wool corrugated sandwich panel, inner skin 0.25mm ,exterior skin 0.5mm
5.door
one set steel door size 930*1980mm
6.window
three sets pvc sliding window size 1140*1200mm
