Building dimensions W2.5M*L5.8M*H2.45M(interior size W2.37M*L5.65M*H2.3M)
frame:2.5mm thickness galvanized frame
install in 10 minutes,can be folded-unfolded many times

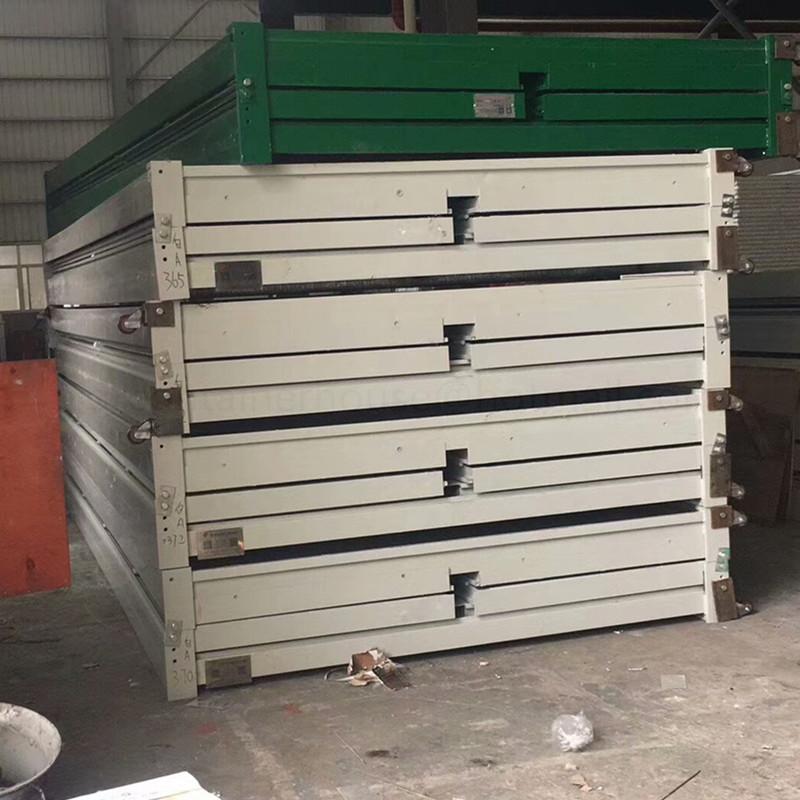

package size:W2.5*L5.8*H0.4M,one 40HC container can load 10 units
prefab 20ft foldable folding container house with following advantage
1.install one house in 10 minutes
2.expand size:W2.48M*L5.8M*H2.5M(interior size W2.295*L5.6*H2.3m) folded size:W2.48*L5.8*H0.49M
3.one 40HC container can load 8 units
4.with insulation
5.galvanized frame+two layers painting,hard to get rusted
6.can be stacked two levels,and add veranda,canopy,railing,stair
7.one set frame around 650kg,one set house is around 1400kg
specification of prefab 20ft foldable folding container house as follows
1.techincal specification
wind load:170km/h
snow load:20cm dry snow
seismic load:7 grade
bearing load:150-200kg/m2

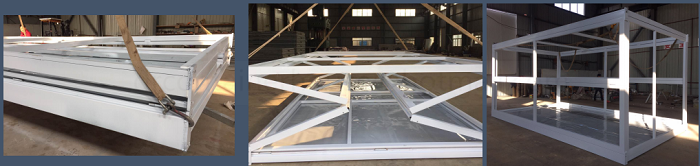

2.frame of prefab 20ft foldable folding container house
top :170*2.0mm thickness frame+two layers paint
bottom:270*2.5mm thickness frame+two layers paint
column:155*2mm thickness frame+two layers paint
3.wall&roof of collapsible container house
50mm rock wool sandwich panel is standard material for wall
optional thickness 75mm,100mm.optional insulation glass wool,EPS,polyuranthane
4.floor of prefab 20ft foldable folding container house
MGO board works as the bottom floor tile
and PVC tile,carpet or wood floor and be added on top of MGO board
5.roof and ceiling of prefab 20ft foldable folding container house
steel plate+50mm glass wool insulation+steel ceiling
6.window and door
standard window:PVC sliding window single glazed
standard door:steel security door
5.Loading
one 40HC container can load 8 units
